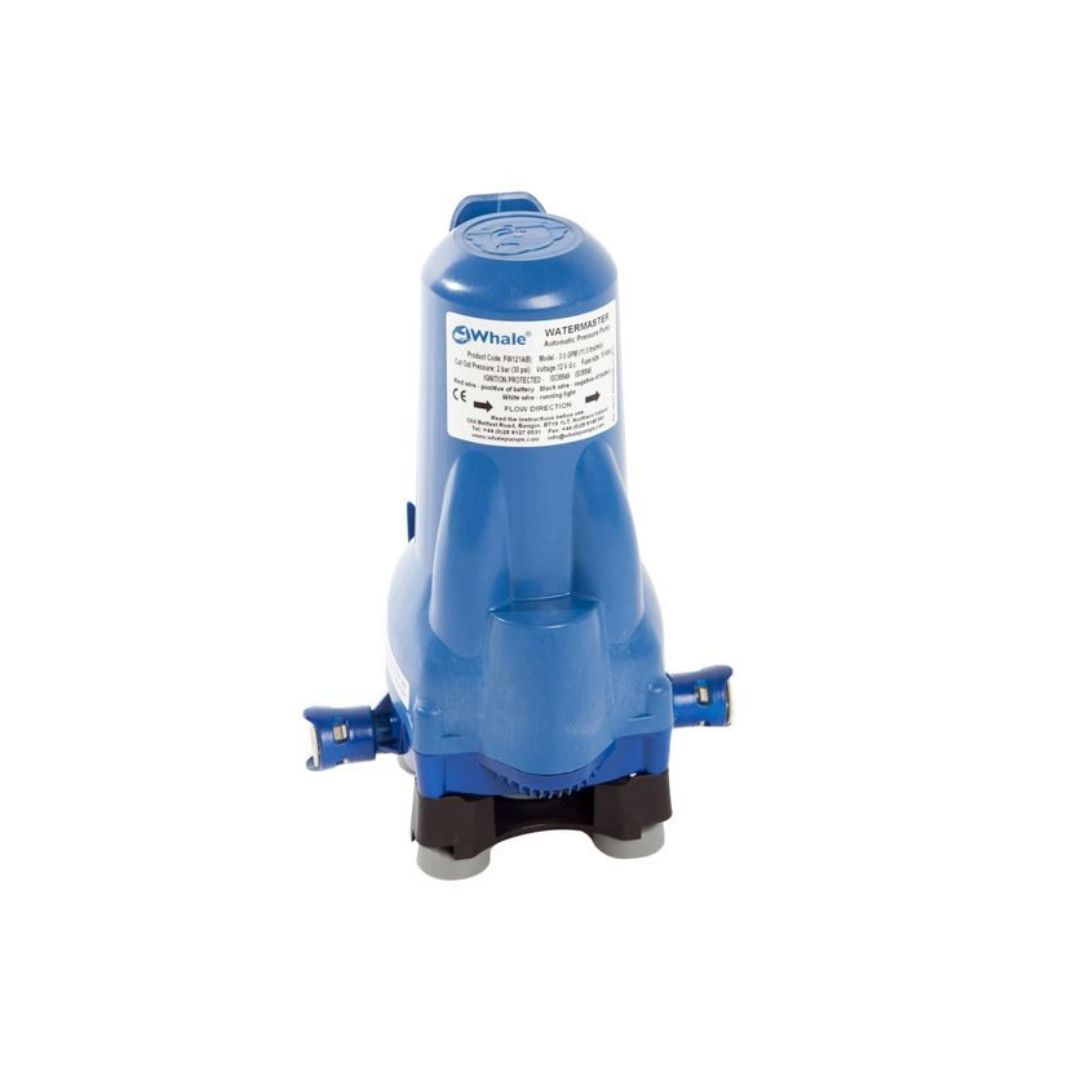

12V Whale FW0814B Automatic Pressure Pump – delivers smooth consistent flow and runs dry without damage.
Please note: This item is new, but, may not be in manufacturers original box due to purchasing bulk items and arriving in one packaging. Item may have some traces of water, this is from testing item at manufacturers.
Pump design based on more than 70 years of marine product experience.
Traditionally automatic pressure pumps designs are mainly focussed on high power or performance, but with Whale’s experience of building products designed to withstand harsh marine conditions, they have added design features to protect the pump for the long haul!
Features and Benefits:
POWER
• High flow rates at a variety of outlets
• Smooth constant flow
• Self priming up to 3m (10ft)
PERFORMANCE
• Quiet, automatic operation
• Easy installation – suitable for 15mm Quick Connect plumbing
• Suitable for use with salt or fresh water
PROTECTION
• Fully sealed protective motor housing
• Completely integrated electronics
• IP65 rated – no water ingress
• Runs dry without damage
• Includes strainer to protect pump from debris
Accreditations:
• Industry Approved IP65 Pump
• EMC compliant
• CE marked
SPECTIFICATION
Wire Size | Minimum Wire Size: 1.5mm² (16 AWG) |
Accumulator Recommended | Yes |
Cut Out Pressure | 30 PSI / 2 Bar |
Flow Rate | 8 LPM (2.2 US GPM) |
Self Primes up to | 3 Metres (10 Feet) |
Maximum Recommended Head | Maximum Discharge Head: 20 Metres (66 Feet) |
Hose Size | 13mm / 1/2″ |
Supplied With | Strainer |
Voltage | 12V DC |
Amps | 4A |
Fuse | 5A |
Approvals | EMC Compliant, CE Marked |

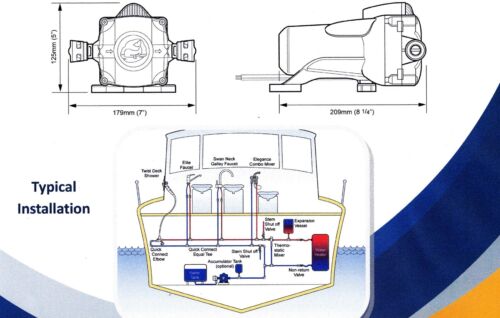

Height | 125mm (4.9″) |
Width | 179mm (7″) |
Length | 209mm (8-1/4″) 2 Year Warranty.
Please note a receipt will be enclosed with the pump, should a warranty claim be necessary, proof of purchase will be required.
Installation and operational manual will be included.
|
