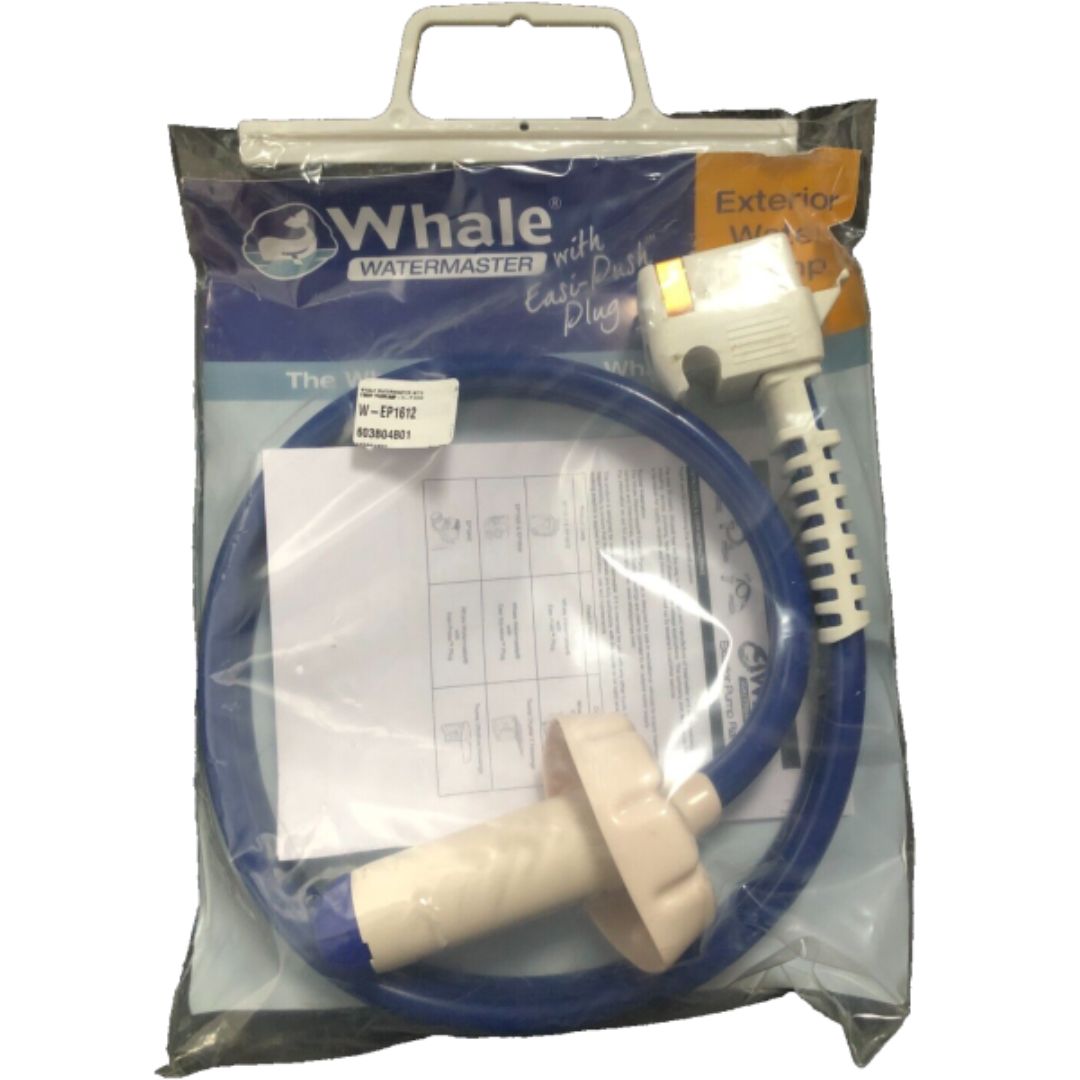

Whale Watermaster High Flow water pump with Easi-Push Plug EP1612/ W-EP1612
Suitable for 12V Whale EP1632 High Flow Watermaster pump with intelligent control (IC) exterior sockets. The Watermaster exterior water pump simplifies the connection between an outside water container into your caravan/motorhomes.
For caravans fitted with either microswitch or pressurised water systems
This Whale High Flow pump and plug is designed for use in recreational vehicles to supply freshwater to caravans and motorhomes, in applications where socket housings are used to connect to an external water supply.
Specification
Flow Rate 1m |
14.8LPM (3.9 US GPM) |
Hose Size |
10mm / 3/8″, 13mm / 1/2″ |
Flow Rate at Zero Head |
15.8LPM (4.2 US GPM) |
Material |
ABS Pump Body, Nitrile Seals, Unfilled PP Impeller, PVC Cable & Hose, PVC insulated Copper Wire, PBT Plug |
Flow Rate at 3 Meter Head |
12.8LPM (3.4 US GPM) |
Continuously Rated |
Maximum continuous operation should not exceed 15 minutes |
Automatic Bilge Pumps |
Yes |
Brand |
Whale |
Model |
EP1612 |
Voltage |
12V DC |
Amps |
3.6A |
Fuse |
5A |
Approvals |
EMC Compliant, CE Marked |
Width |
36mm (1-7/16″) |
Length |
129mm (5-1/16″) |
Operating Temperature |
3ºC to 40ºC
Includes installation and user instructions. Thank you for looking. |
